产品名称
|
资料下载
|
描述
|

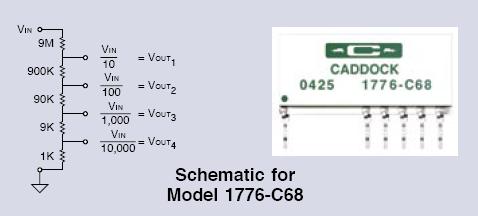

1776
|
|
型号:1776
品牌:CADDOCK
特点:Type 1776 Precision Decade
Resistor Voltage Dividers
Voltage Dividers,10:1 to 10,000:1
-Ratio Tolerance 0.02%,0.05%,0.1%
0.25% or 0.5%
-Ratio TC of 5,10,25 or 50 ppm/°C
from 0°C to +70°C
-Select from 39 different models
-Vo;tage rating to 1,200 volts
|

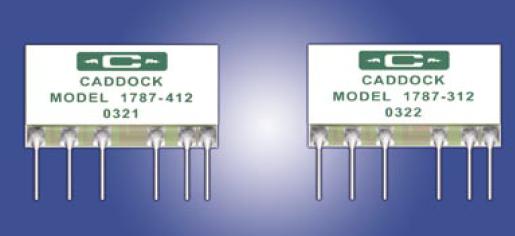

1787
|
|
型号:1787
品牌:CADDOCK
特点:Type 1787 Current Shut
Resistor Networks
Accurate Current Sense Networks
-Abs. Tolerance of 0.05%,0.25%,0.1%
-Abs.TC of 50,80,or 100ppm/°C
from 0°C to +70°C
-Se;ect from 12 different models
|

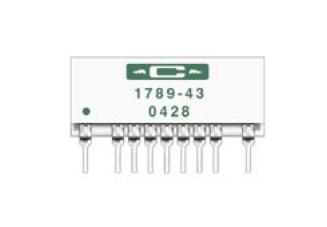

1789
|
|
号:1789
品牌:CADDOCK
特点:Custom Precision and Ultra-Precision
SIP Resistor Networks
Resistance values from 1 ohm to 50 Meg
-Absolute Tolerance from 0.25%,0.025%
Ratio tolerance from 0.1% to 0.01%
-Absolute TC of 15,25,50ppm/°C
-Ratio TC of 5,10,25 or 50 ppm/°C
Operating temperature of -40°C to +85°C
|

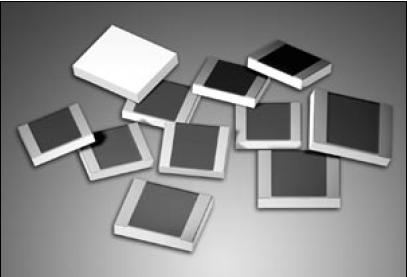

CC
|
|
型号:CC
品牌:CADDOCK
特点:Type CC Low Resistance Precision Chip Resistors
WB version for wire Bonding in Hybrid Applications
FC version for Flip Chip Mounting in SMT Applications
-Resistance as low as 0.010 ohm at 5%
-Wire bondable version for heavy aluminum wire bonds
-Power ratings for WB versions up to 15watts
based on maintaining 25°C on the chip
mounting surface.
|

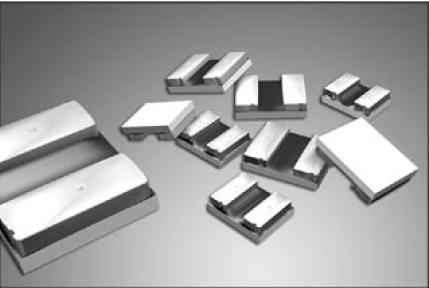

CD
|
|
型号:CD
品牌:CADDOCK
特点:Type CD Lowest Resistance
Precision Chip Resistors with
Unique Pedestal Terminal Design
WB version for Wire Bonding in Hybrid Applicationsbr>FC version for Flip Chip Mounting in SMT Applications
-Resistance as low as 0.010 ohm at 1%
-Wire bondable version with unique pedetal
teminals to receive heavy aluminum wire bodns
-Power ratings for WB versions up to 20watts
based on maintaining 25°C on the chip
mounting surface.
-Power ratings for FC version up tp
1.5 watts at 70°C ambient
Flip Chip version for SMT applications
|
