型号：100
品牌：RCD
特点:-World’s widest range of axial lead WW resistors! 0.005Ω to 2MΩ,
tolerances to ±0.005%, 1/2W to 50W, numerous design options
-Low cost! Available on exclusive SWIFTTM delivery program

型号：200
品牌：RCD
特点:-Significant space savings!
-Tolerance to +0.01%, TCR to 5ppm/°C
-Wide resistance range: 0.005Ω to 250K
-Available on exclusive SWIFTTM delivery program
-All sizes available on Tape & Reel

型号：600
品牌：RCD
特点:-Widest selection in the industry! 5 to 1000 Watt
-0.005Ω to1MΩ, tolerance to .01%, TC to 5ppm
-High power and high pulse capacity in compact size
-Welded wirewound construction, low noise

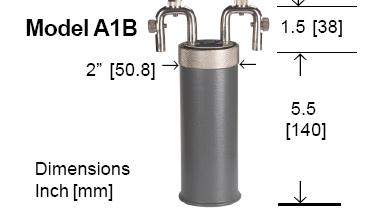

型号：A
品牌：RCD
特点:-Designed for use as DC Resistance Standards in
industrial, research, and metrology laboratories
-Standards are individually tested and certified to
the National Institute of
Standards and Technology
-Accuracies to ±0.0005%!
-Choice of models: A1 offers utmost precision and
stability for ‘primary standard’ applications, A2 offers
economical ‘secondary standard’ performance
-Values from 0.01Ω to 1MΩ are standard (any
decade or intermediate value can be offered on a
custom basis from 0.001Ω to 1013Ω, consult factory)
Low thermal EMF and voltage coefficients
RCD standards lab offers recalibration services
-Low temperature coefficient (approx. 10ppm/°C)
-Operating temperature: 0°C to +40°C
-Low cost 2-terminal banana plug standards avail.

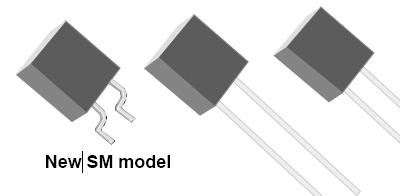

型号：BC
品牌：RCD
特点:-Wide resistance range up to 1000 MegOhm
-TC’s as low as ±25ppm available
-Standard tolerance is ±1%; 0.1% available
-Significant space savings over axial lead resistors
-Available on Tape & Reel
-Economically priced
Precision quality, excellent stability, low inductance

型号：BLU
品牌：RCD
特点:-Industry’s widest range of precision chip resistors!
-Tolerance to ±0.01%, TCR to 5 ppm/°C

型号：BW-MBW
品牌：RCD
特点:-Industry’s widest selection of fusible film resistors -
1/8W to 3W, .1Ω to 24KΩ, 1% to 5%, leaded & surface mount
-Low cost, quick delivery (available on SWIFTTM program)
-Flameproof (UL94V0), surface-mount versions available

型号：ATB-ATS-PTB
品牌：RCD
特点:-Industry’s widest range of positive TCR resistors!
-Available on exclusive SWIFT TM delivery program!
-Additional sizes available--most popular shown below

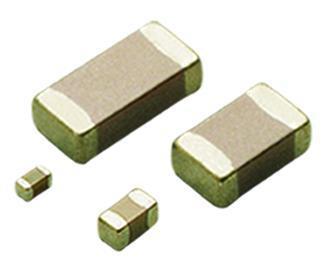

型号：CE
品牌：RCD
特点:-Industry’s widest range and lowest prices: 0201 to 3035 size,
.47pF to 100uF, 6.3V to 4KV (up to 20KV custom available)
-New X5R high-capacitance dielectric offers lower impedance
and ESR (especially at higher frequencies), at lower cost &
smaller size than tantalum, aluminum, and film styles
-Quick delivery, wide selection available from stock!
-Lead-free tin plating is standard
-Precision matching to 0.1% available
